Ceramic – Metal Components
High-precision ceramic-to-metal brazed assemblies for demanding environments
AVELION is an ideal partner for the design and manufacture of brazed assemblies, from prototype development to series production. AVELION custom-manufactures components in which dissimilar materials are required to meet specific technical requirements. Ceramics (aluminium oxide, sapphire, zircon, etc.) and metals (beryllium, titanium, copper, ferrous and non-ferrous alloys, etc.) are the core materials used across manufacturing processes such as forming, machining, grinding, surface treatment, vacuum and controlled-atmosphere brazing, welding, and bonding for demanding applications in electron microscopy, defense, nuclear, and subsea environments.

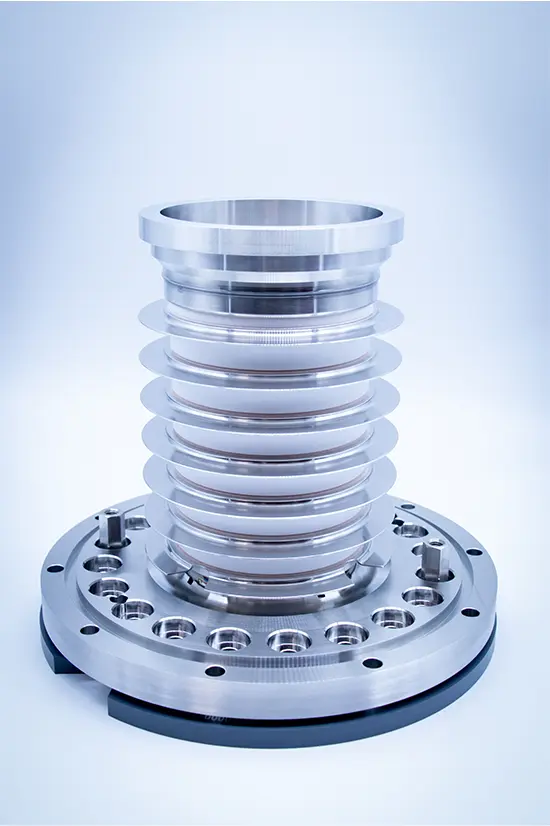

Ceramic-to-Metal Brazed Mechanical Components for Electron Microscope
- High dimensional accuracy
- Ultra-clean components with controlled deburring
- Expertise in brazing dissimilar materials
- Compatibility with UHV environments
Ceramic-to-metal brazed mechanical components for electron microscopes are critical elements that ensure precise positioning, mechanical stability, and vacuum integrity within the instrument. High dimensional accuracy is essential to guarantee proper alignment of electron-optical elements and to maintain imaging resolution.
Manufacturing processes are optimized to achieve exceptional cleanliness, controlled deburring, and surface quality, minimizing particle generation and contamination risks. The controlled brazing of dissimilar materials — typically ceramics and metallic alloys — ensures robust mechanical joints while accommodating differences in thermal expansion and mechanical behavior.
These components are specifically developed to meet the stringent mechanical, vacuum, and cleanliness requirements of electron microscopy applications.

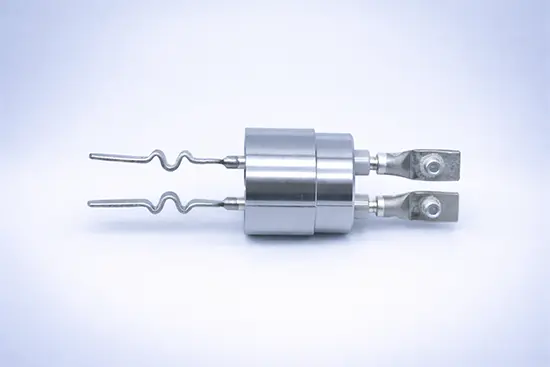

Ceramic and Metal Feedthrough
- Reliable electrical transmission across sealed vacuum or pressure boundaries
- Made from dissimilar materials and resistant in harsh environments
- Feedthroughs designed and constructed for civil and military applications
Ceramic-to-metal feedthroughs are critical components used to transfer electrical signals or power across a vacuum or pressure boundary while maintaining electrical insulation and environmental sealing. They are designed to ensure reliable electrical performance while preserving vacuum integrity and mechanical robustness.
These feedthroughs combine ceramics and metallic parts through controlled joining processes, allowing the use of dissimilar materials optimized for thermal, electrical, and mechanical performance. Their robust design makes them suitable for operation in harsh environments, including applications subject to severe thermal, mechanical, and electrical stresses.
All designs are developed to meet the reliability and qualification requirements of civil and military applications.

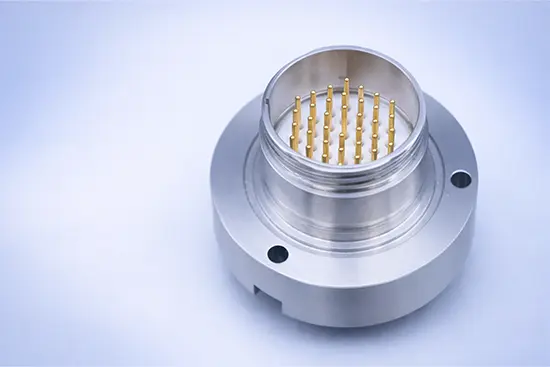

Connectors for demanding applications
- High-pressure, high-voltage
- Made from dissimilar materials and resistant to harsh and corrosive environments
- Designed and manufactured for applications in severe environment, such as submarines
AVELION’s connectors for demanding environments are designed to ensure safe and reliable electrical connections in applications subject to extreme mechanical, electrical, and environmental constraints. They are engineered to withstand high pressure and high voltage while maintaining insulation, sealing, and electrical performance.
The selection of materials, sealing technologies, and surface treatments allows these connectors to operate in harsh and corrosive environments, including subsea applications. AVELION’s experience in supplying connectors for submarine systems, such as those developed for IFREMER, demonstrates its ability to meet the stringent requirements of severe and mission-critical environments.

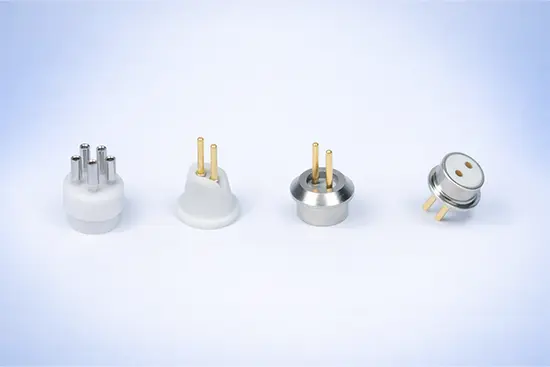

Pyrotechnic Igniters
- Highly accurate and robust components designed to safely contain controlled explosive events
- Engineered for reliable and repeatable ignition in demanding defense applications
Pyrotechnic igniters are critical safety and functional components used to initiate controlled explosive or pyrotechnic events in defense systems. They are engineered with high dimensional accuracy and robust mechanical design to safely contain the ignition chamber during explosive activation.
Their design takes into account extreme pressure, temperature, and dynamic loads generated during ignition, ensuring predictable and repeatable performance. Manufactured under controlled processes, these components meet the demanding reliability and qualification requirements associated with defense applications.

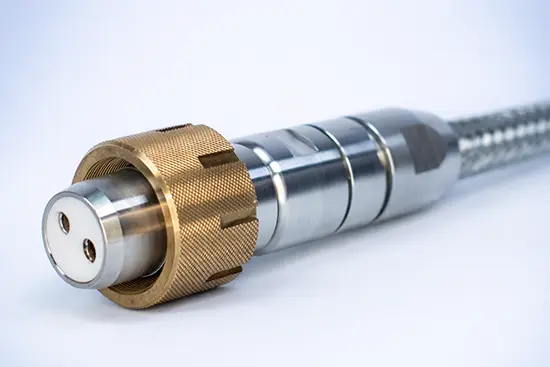

Cable Connectors
- Safe and reliable cable connectors for very high-voltage in harsh environments
- Proven design for mission-critical defense and nuclear applications
AVELION’s cable connectors are engineered to provide safe and reliable electrical connections in applications exposed to very high voltages and severe environmental conditions. Their design ensures robust insulation and mechanical integrity, even under high electrical stress.
These connectors are designed and assembled directly onto cables, allowing optimized integration into complex systems. AVELION’s experience in supplying connectors for nuclear applications, such as those implemented on Barracuda submarines, demonstrates its capability to meet the stringent reliability, safety, and performance requirements of mission-critical environments.
