High-energy X-ray inspection solutions for 2D and 3D imaging
Scalable solutions from inspection services to full systems
Avelion develops and implements high-energy X-ray inspection systems based on its industrial LINAC technology, covering both radiographic (2D) and tomographic (3D) inspection needs. To address the diversity of industrial use cases, Avelion proposes three complementary inspection approaches, depending on the level of integration, autonomy and inspection maturity required.
Overview of 2D and 3D Imaging Techniques
- Inspection of dense and complex components
- Fast defect detection by radiography
- Full volumetric analysis by computed tomography
High-energy radiography and high-energy computed tomography are advanced non-destructive imaging techniques used for the inspection of dense and complex components, providing complementary two-dimensional and three-dimensional information on their internal structures.

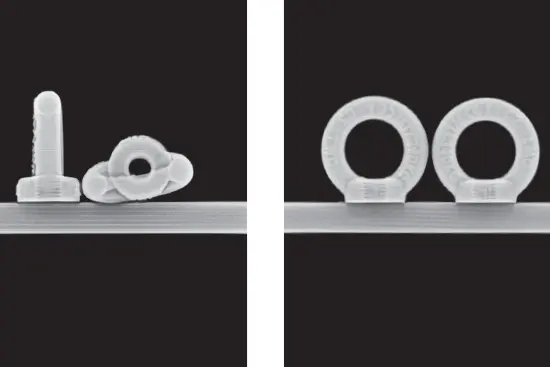

High-Energy Radiography
High-energy radiography provides fast and reliable inspection of dense or large components, enabling the detection of internal features and defects that are not accessible with lower-energy techniques.
This inspection mode is used both for inspection services and as a reference configuration for defining industrial radiography systems integrating LINACs and digital imaging.
High-Energy Computed Tomography
High-energy computed tomography extends inspection capabilities to full volumetric analysis. It provides three-dimensional insight into internal structures, enabling detailed evaluation of complex assemblies and critical components.
Modular inspection platform for inspection services
- Modular and reconfigurable imaging architectures
- Support for NDT services, demonstrations and feasibility studies
- Flexible geometries and acquisition modes for specific inspection need

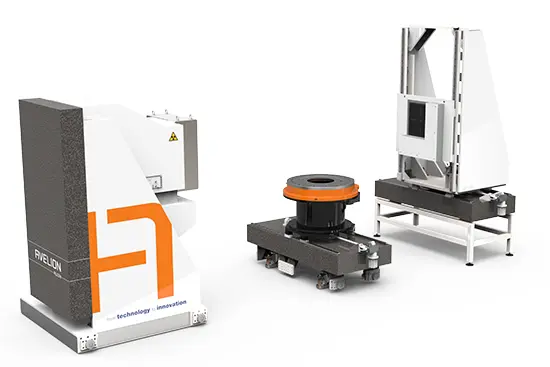

Avelion operates a high-energy X-ray inspection platform at its facilities, based on ORIATRON® LINACs and modular imaging configurations.
This platform is designed to support:
-
- Non-Destructive Testing services on customer components
- Demonstrations and proof-of-concept inspections
- Feasibility studies for complex inspection cases
- Research and development activities on high-energy radiography and tomography
Its modular design allows rapid adaptation of inspection geometries, imaging configurations and acquisition modes to match specific inspection objectives.
Integrated High-Energy Inspection Solutions
- Turnkey high-energy X-ray and CT solutions
- Integrated 2D radiography and 3D tomography
- Customized solutions for fixed or on-site use
- Scalable solutions from testing to production

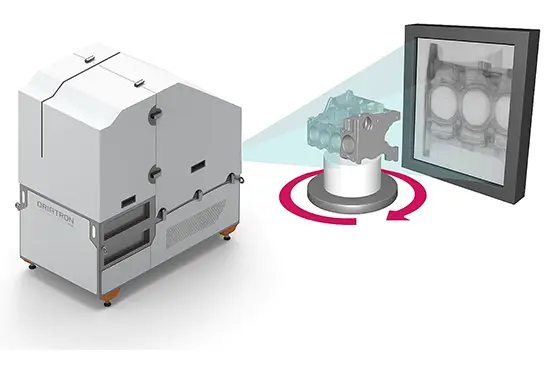

Avelion provides integrated high-energy X-ray imaging solutions based on industrial LINACs, covering the full spectrum from 2D radiography to 3D computed tomography for both inspection services and customized system deployment.
Integration of imaging systems with LINACs
Beyond inspection services, Avelion designs and supplies high-energy X-ray inspection systems integrating LINACs with digital imaging solutions.
These systems combine:

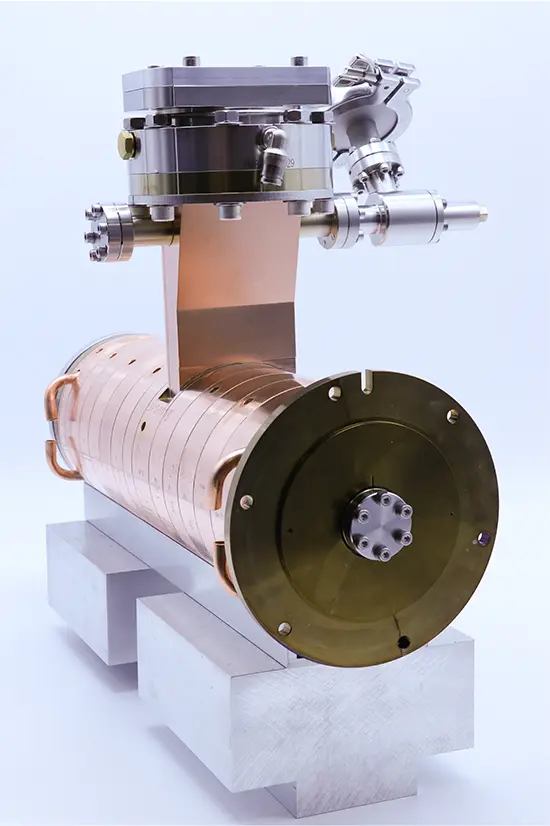

- Industrial LINAC X-ray sources
- Digital imaging for 2D radiography and 3D tomography
- Object positioning and manipulation systems
- Acquisition, reconstruction and analysis software
This approach allows customers to deploy customized inspection systems adapted to their specific components, production constraints and inspection objectives, whether for fixed installations or on-site inspection scenarios.
Complete high-energy tomographic systems
For applications requiring full volumetric inspection as a primary capability, Avelion also proposes the delivery of complete high-energy X-ray tomographic systems.
These systems are designed to provide:
- Full 3D reconstruction of dense or complex components
- High-resolution internal inspection using high-energy X-rays
- Analysis and defect characterization throughout the entire volume
2D and 3D imaging with a unified technological approach
Across these three inspection options, Avelion relies on a consistent technological foundation based on industrial LINACs and high-energy X-ray imaging.
This unified approach ensures continuity between:
- Feasibility studies and demonstrations
- Inspection services and system deployment
- Radiographic inspection and computed tomography allowing customers to evolve their inspection capabilities from initial evaluation to fully operational 2D and 3D inspection systems.
