Projects & Applications
Innovative, high-quality solutions for X-ray imaging systems
For years, AVELION has been working closely with our customers and collaborators to fully understand their specific needs and requirements, delivering high-quality, innovative, and tailor-made solutions for X-ray imaging systems.
ITER Vacuum Vessel Weld Inspection Project
- ITER is a major international scientific project to build the world’s largest fusion energy experiment
- AVELION is developing a dedicated Linac solution for ITER to perform radiographic inspection of Tokamak sector welds, avoiding the use of radioactive sources that decay over time
- Faster inspections, safer operations and uncompromised image quality

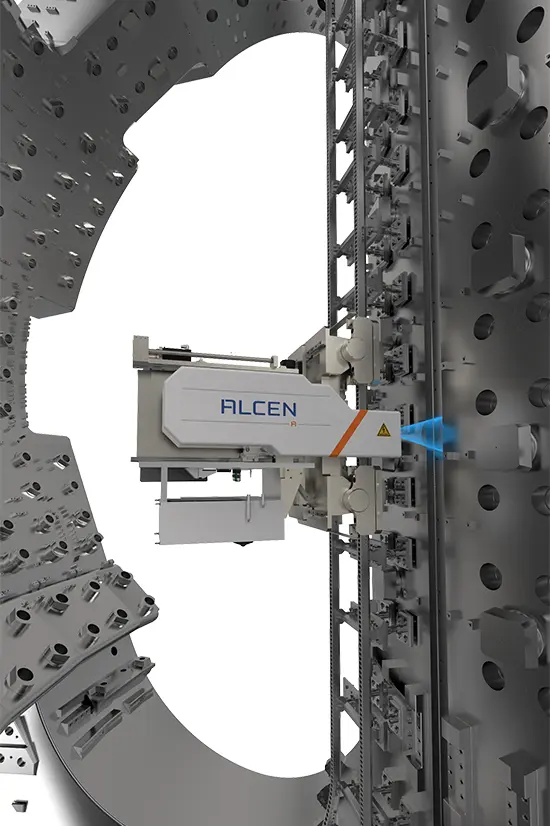

AVELION is developing a dedicated Linac solution, replacing the radioactive sources use, to meet ITER requirements for radiographic inspection of the sector field joint welds on the ITER Tokamak.
Unlike conventional radioactive sources, which progressively lose activity and dose rate over time, the AVELION Linac delivers consistent, long-term inspection performance, ensuring reliable weld evaluation throughout its operational lifetime. Compared to traditional inspection technologies, the AVELION Linac solution offers clear and decisive advantages:
Ultra-short exposure time
A complete radiographic inspection can be performed in less than 10 minutes (Vs more than 4 hours for a 60 mm stainless Steel radiography).
Enhanced radiation safety
Radiation is generated only when the system is powered on, eliminating risks during transport, storage and handling.
Full dose traceability
An integrated dose monitoring system enables precise control and recording of delivered dose and exposure parameters.
Highly accurate dose placement
Source collimation combined with a motorized positioning system ensures the dose is delivered exactly where required.
Linac solution for the Jules Horowitz Reactor Project
- The Jules Horowitz Reactor (RJH) is a European research reactor under construction in France
- Modular high-performance X-ray solution delivered to CEA Cadarache (RJH) for non-destructive testing of irradiated and non-irradiated nuclear components
- Single 6 MeV LINAC shared across three stations delivers wide-range, high-resolution inspections with a mobile, self-shielded design suited for nuclear environments

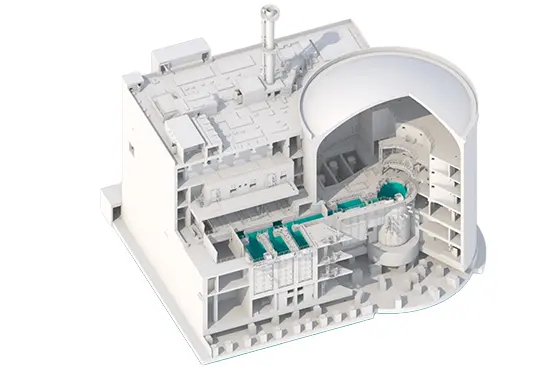

The Jules Horowitz Reactor (RJH) is a research reactor led by the French Atomic Energy Commission (CEA) and currently under construction at Cadarache, France. Its main purpose is to test how nuclear materials and fuels behave under irradiation, supporting the safety and performance of current and future nuclear reactors. In addition, the RJH will produce radioisotopes for medical applications and for non-nuclear industrial uses.

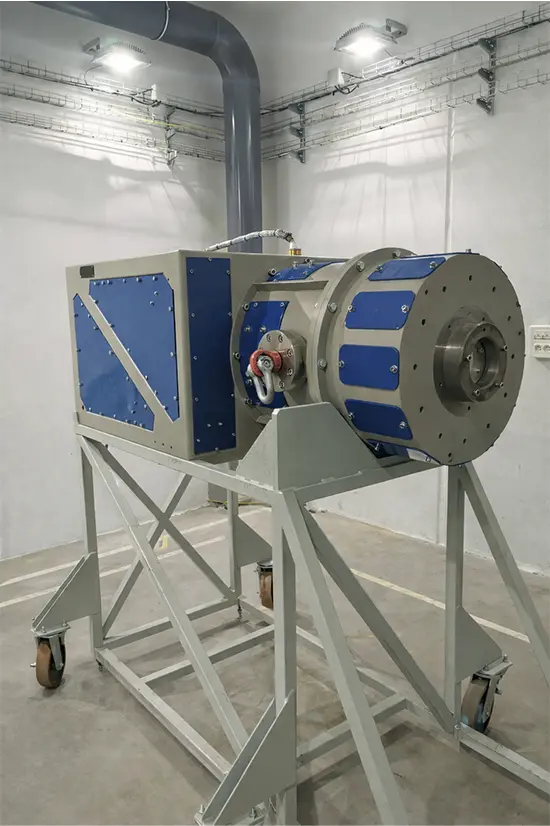

AVELION delivered a modular high-performance X-ray imaging solution for the non-destructive examination of irradiated and non-irradiated experimental components at the Jules Horowitz Reactor (RJH), CEA Cadarache.
Key capabilities and benefits
Broad inspection range
- Cylindrical devices from 32 to 200 mm in diameter
- Complex and heterogeneous fuel elements and experimental assemblies
Single LINAC architecture for multiple stations
- One 6 MeV linear accelerator shared across three imaging stations
- Simplified operation, reduced maintenance, and consistent imaging performance
Designed for constrained nuclear environments
- Mobile and reconfigurable system architecture
- Fully compatible with restricted access areas and hot-cell logistics
High-resolution, Exceptional focal spot stability
- Geometric resolution with a reduced X Ray focal spot of approximately 300 µm
- Detection of structural details down to a few tens of microns
- Maintains precision under mechanical and thermal stresses of high-energy operation
Integrated self-shielding
- No dedicated bunker required, suitable for installation near work areas
- Designed for safe, efficient use in industrial and nuclear R&D environments
AVELION enables clear, reliable insight into critical nuclear components, where precision, safety, and operational constraints leave no room for compromise.
Application fields
- Aerospace & Space
- Defense & Security
- Energy & Nuclear
- Industry
Aerospace & Space
AVELION LINAC systems support inspection requirements in aerospace and space programs where structural integrity and reliability are essential. These systems enable the imaging of dense materials and complex geometries, ensuring internal quality assessment while meeting the high standards of safety-critical applications.
Typical inspected parts: Solid rocket motors, propellant tanks, structural components
Defense & Security
For Defense & Security applications, inspection systems must combine penetration capability, image quality and operational robustness. AVELION LINAC systems are designed to inspect dense and complex assemblies while maintaining stable performance and repeatability. Their compact and configurable architecture enables integration into controlled and secure environments.
Typical inspected parts: Missiles, dense assemblies, critical subsystems
Energy & Nuclear
Energy and nuclear sectors require inspection technologies capable of penetrating thick materials while operating within regulated and constrained environments. AVELION develops compact, high-energy X-ray systems adapted to these demanding conditions. These solutions are designed for reliable operation, controlled radiation management and integration into existing infrastructures.
Typical inspected parts: Thick steel components, complex welded structures
Industry
In industry and advanced manufacturing, internal defect detection is key to ensuring performance and durability of high-value components. AVELION systems provide high penetration capability and consistent image quality for large or dense parts. Their modular design enables deployment in various industrial configurations. These equipment contribute to quality control, process validation and long-term asset reliability.
Typical inspected parts: Castings, large metal components, high-value parts
